Honda OEM Timing Chain Guide 14530-PNA-003 – K20 Engine Guide Rail

Honda OEM Timing Chain Guide 14530-PNA-003 – K20 Engine Guide Rail

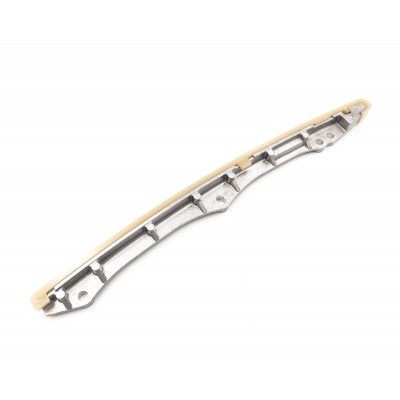

The Honda OEM timing chain guide 14530-PNA-003 is a genuine guide rail used in K20-series engines. Its job is to keep the timing chain running on the correct path, reduce vibration and support stable chain tension. On Honda K20 engines, healthy guides are essential for precise timing, quiet operation and reliable performance at higher RPM.

Applications – Honda models with K20 engines

This timing chain guide is fitted to many popular Honda models equipped with K20 engines:

• Honda Accord VII (2003–2008)
  • Accord 4D – K20A6, K20Z2
  • Accord Tourer – K20A6, K20Z2
• Honda Civic
  • Civic 3D 2001–2011 – K20A2, K20Z4
  • Civic 5D 2004–2005 – K20A3
• Honda CR-V
  • CR-V 2005–2006 – K20A4
• Honda FR-V
  • FR-V 2005–2006 – K20A9
• Honda Stream
  • Stream 2001–2005 – K20A1

Because Honda used different chain guide designs depending on model year and cylinder head version, it is always a good idea to confirm part numbers by VIN in the Honda EPC before ordering.

Why choose the genuine Honda 14530-PNA-003 chain guide?

• Built to Honda specification – geometry, material and hardness exactly as designed by the manufacturer.
• Accurate chain routing – helps to keep the timing chain aligned, with fewer vibrations and less noise.
• Stable valve timing – essential for consistent performance and proper VTEC operation on K20 engines.
• Long service life – OEM guides are designed to withstand high mileage under real-world conditions.
• Perfect fitment – direct replacement for the original part, no modification required.

When should the timing chain guide be replaced?

On K20 engines it makes sense to inspect and replace the guides when:

• the timing chain becomes noticeably louder (rattling, rustling, metallic noise),
• the chain tensioner is working close to its maximum extension,
• there are clear signs of wear, grooves or cracks on the guide surface,
• you are overhauling the complete timing system (chain, tensioner and other guides).

For engines with higher mileage or an unknown service history, many workshops recommend replacing the entire timing set to restore factory-level chain control.

FAQ – Honda 14530-PNA-003 Timing Chain Guide

1. Does the 14530-PNA-003 guide have the same applications as 14520-PNA-003?
Both guides are part of the timing system on K20 engines and are used in the same Honda models, but they sit in different positions and play different roles in guiding the chain. Always select the full set according to the EPC and VIN.

2. Is it safe to use aftermarket chain guides instead of OEM?
On K-series engines, genuine Honda guides are strongly recommended. Aftermarket parts often differ in material hardness, which can lead to faster wear and increased timing chain noise.

3. Should the guide be replaced together with the chain and tensioner?
Yes. Replacing the chain, tensioner and all guides in one service is the safest and most cost-effective approach in the long term.

4. What symptoms point to a worn chain guide?
Louder timing chain operation, metallic rattling at cold start, timing-related error codes or a tensioner that is almost fully extended. In such cases, a full timing system inspection is highly recommended.
