Rear Brake Caliper Repair Kit with Piston – Honda Accord VI / VII – Autofren D4846C

Rear Brake Caliper Repair Kit with Piston Honda Accord VI / VII - Autofren D4846C

A premium rear brake caliper repair kit from the Spanish specialist Autofren Seinsa. The D4846C kit is a complete solution for effective caliper refurbishment, which is particularly important for Honda models where the handbrake mechanism integrated into the caliper is prone to seizing over time.

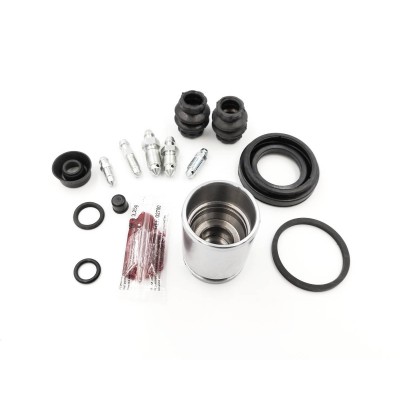

The kit includes:

• Precision-manufactured brake piston,
• Full set of rubber seals (lip seal and dust boot),
• Guide pin boots (slider boots),
• High-performance assembly grease for rubber components.

Applications

This kit is designed for the rear axle of the following Honda models:

Honda Accord VI (1998-2003)

• Sedan (CG8, CG9, CL3) and Hatchback (CH6, CH7, CH8, CL4)
• 2.2 Type-R (CH1) version – H22A7 engine
• Other engines: 1.8 i, 2.0 i, 2.3, 2.0 Turbo DI

Honda Accord VII (2003-2008)

• Sedan (CL7, CL8, CL9) and Tourer/Wagon (CM1, CM2, CN1, CN2)
• USA/Coupe versions: 2.4 Vtec (CM5), 3.0 V6 (CM6)
• Engines: 2.0 i-VTEC, 2.4 i-VTEC, 2.2 i-CTDi

OEM Reference Numbers

This kit is compatible with calipers using the following Honda part numbers:

• 43012-S1A-E01, 43013-S1A-E01
• 43012-SEA-E01, 43013-SEA-E01

When to Replace / Symptoms of Wear

Rear caliper refurbishment is necessary if you notice:

• Handbrake issues (ineffectiveness or the wheel remaining locked).
• The wheel rim becoming hot after driving (piston not retracting properly).
• Brake fluid leaks around the piston or the handbrake actuator mechanism.
• Cracked rubber boots, leading to corrosion on the piston and caliper bore.

Installation & Service Tips

Before installing new components, thoroughly clean the inside of the caliper, paying close attention to the seal groove. In Honda rear calipers, the piston is threaded/screwed in (due to the handbrake mechanism); therefore, a specialized brake piston wind-back tool is recommended for installation. After replacement, it is essential to bleed the brake system and adjust the parking brake.

FAQ – Frequently Asked Questions about D4846C

Does the kit include the piston?
Yes, the "C" suffix in the Autofren part number (D4846C) confirms that the package includes the piston along with the full seal kit.

Is this kit compatible with the Accord Type-R CH1?
Yes, this kit is fully compatible with the rear calipers of the legendary 6th generation Type-R.

Does the kit fit both left and right sides?
Yes, the components are identical for both sides. One kit services one caliper (one wheel).
